Recommended Printer : ZD510-HC
*Other printers in theory could work but have not been tested by Flybook and therefore we cannot provide support for the use of those printers.
Naviagation: Setup>>Account>>Cloud Print
If you would like to use wristbands rather than tickets follow the steps below.
- Go To Setup

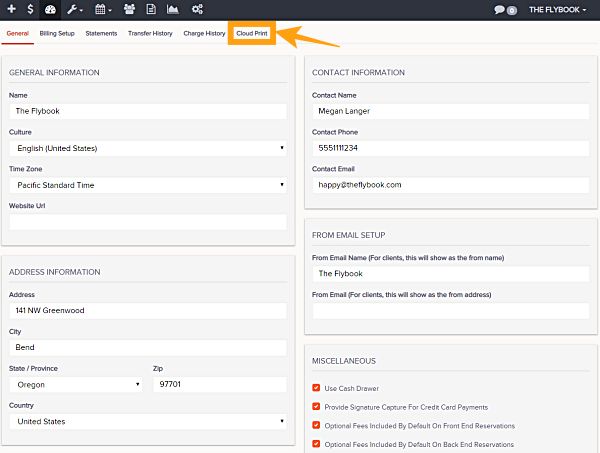

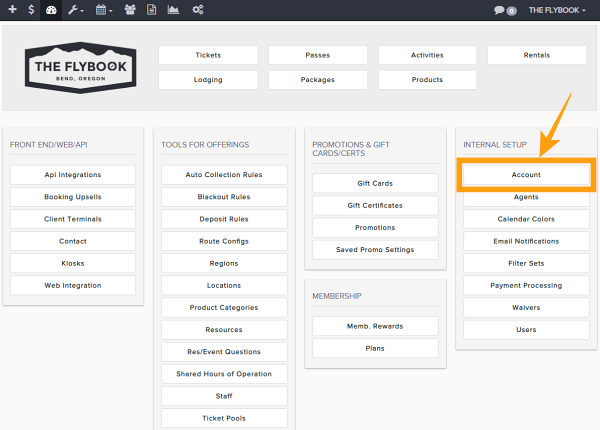

- Click on Account than on the Cloud Print tab

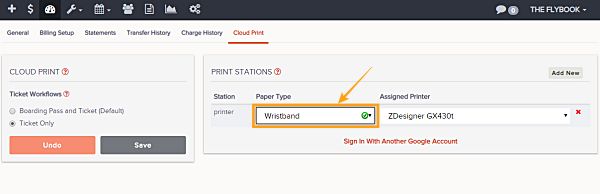

- Under Print Stations for the Paper Type select Wristband

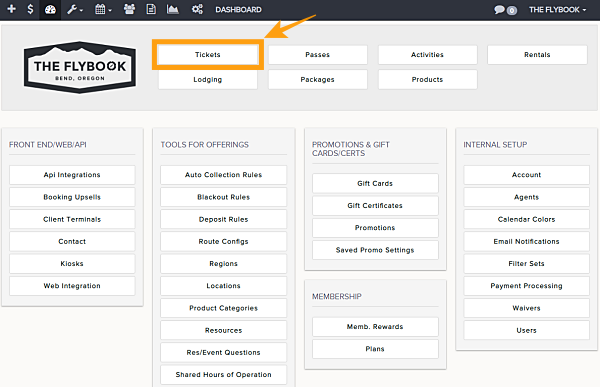

- Now go to Tickets and click on ticket config(s) you want to print on a wristband

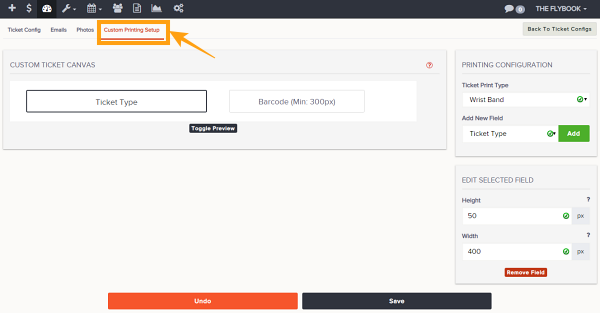

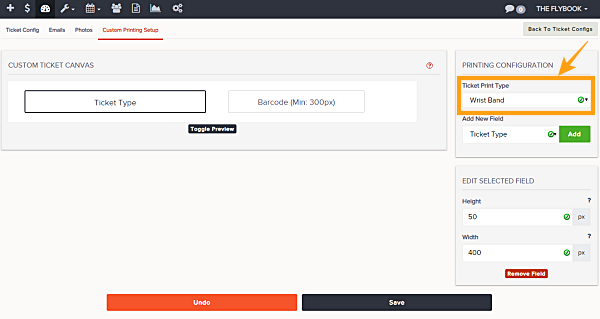

- Click on Custom Printing Setup then on for Ticket Print Type select Wristband
- This will change the canvas that is available to you, from here you Add New Field(s) to canvas and arrange the wristband to your liking.
- Once created Save the setup
- If you have not already load the wristband stock into the Zebra GX430t

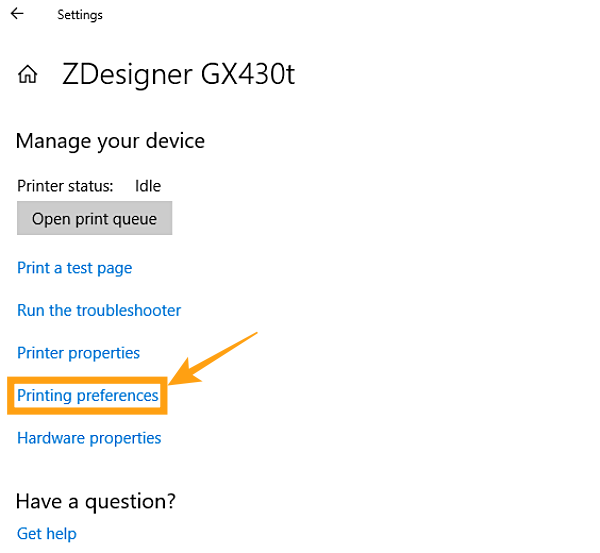

- Go to your printer settings for the computer connected to the printer and click on the Manage button

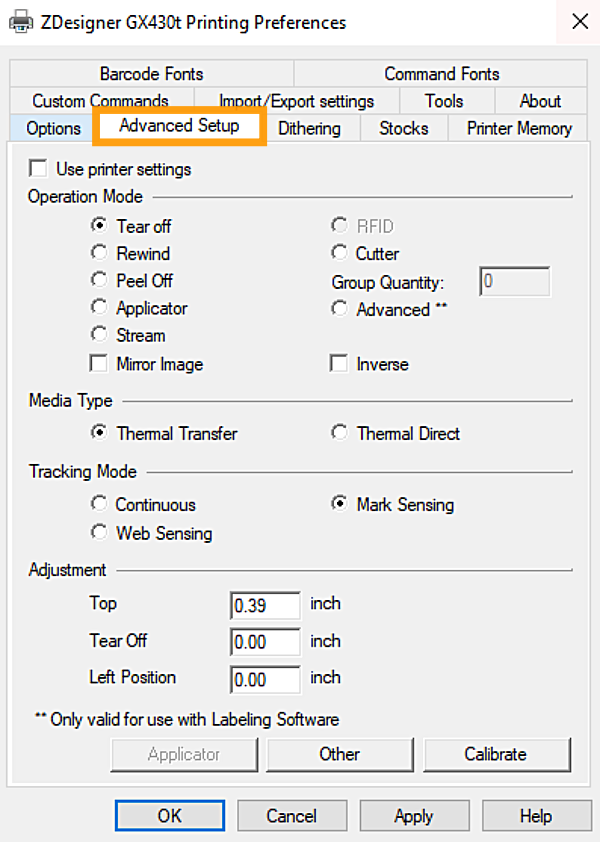

- From here go to the Advanced Setup tab and verify these are the settings
- Operation Mode = Tear Off
- Media Type = Thermal Transfer (this might differ depending on your wristband stock)
- Tracking Mode = Mark Sensing

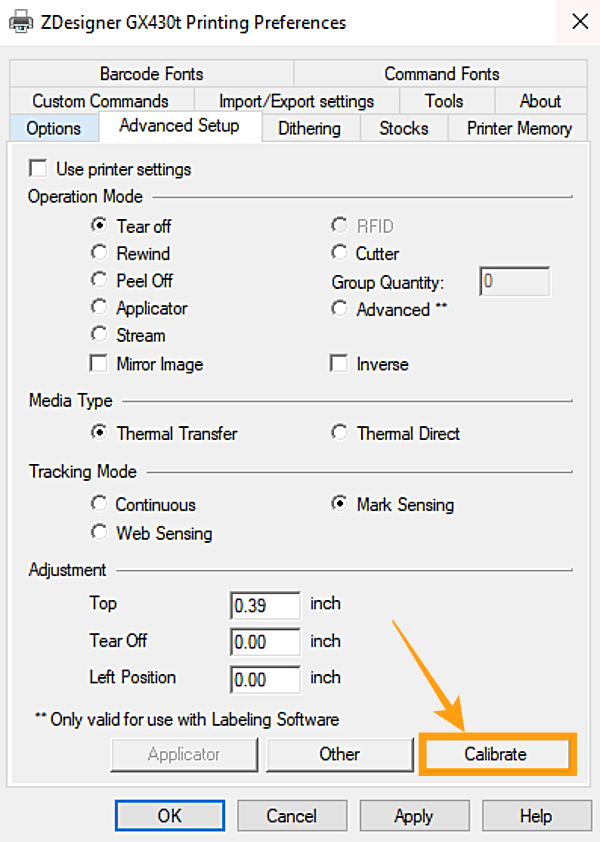

- Once applied click the Calibrate button (This calibrate the printer to the wristband stock if you get a red light after calibrating open and close the printer then push the feed button)

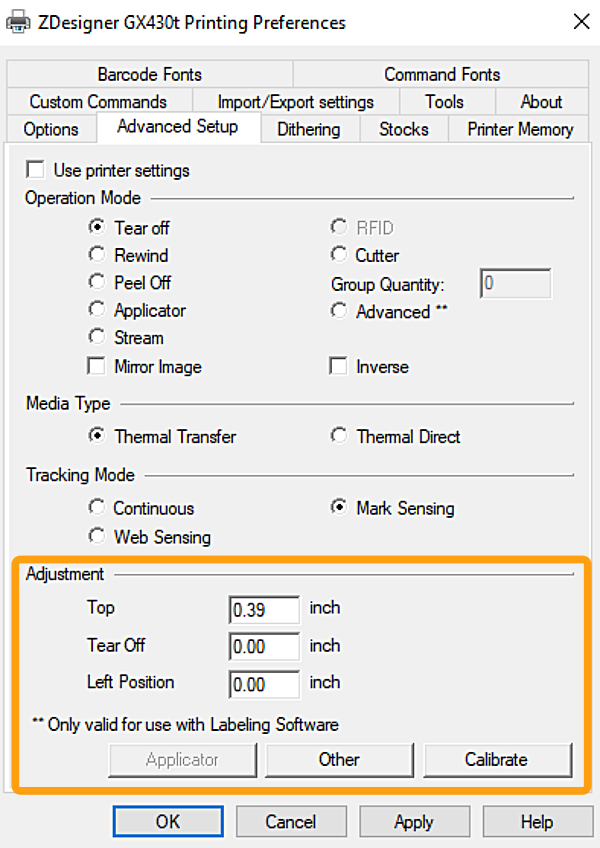

- Once Calibrated correctly print a test wristband and check to see that the printing is aligned correctly. If it is off the band you may need to go back to Advanced Setup and use the Adjustments area to center the printing.
- Always remeber to Save changes.
